Circuit Breaker :
Circuit breaker is an automatically operated electrical
switch designed to protect an electrical circuit from damage caused by overload or short circuit. Its basic function is to detect a fault condition and, by interrupting continuity, to immediately discontinue electrical flow.
Unlike a fuse, which operates once and then must be replaced, a circuit breaker can be reset (either manually or automatically) to resume normal operation.
Circuit breakers are made in varying sizes, from small devices that protect an individual household appliance up to large
switchgear designed to protect high voltage circuits feeding an entire city.
Product Range :
|
|
DESCRIPTION
|
RATED VOLTAGE
|
RATED CURRENT
|
BREAKING CAPACITY
|
STANDARDS
|
| Indoor Type |
|
|
|
|

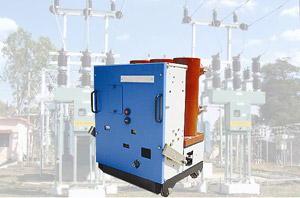

| 12kV VCB (Calix) |
Up to 12 kV |
Up to 4000 A |
Up to 50 kA |
IEC,IS |
| 36 KV VCB (Felix) |
Up to 36 kV |
Up to 2000 A |
Up to 40 kA |
IEC,IS |
| Vertical Isolation VCB |
Up to 12 kV |
Up to 1250 A |
Up to 20 kA |
IEC,IS |
| Retrofit Solution |
Up to 12 kV |
Up to 2000 A |
Up to 40 kA |
IEC,IS |
| Outdoor Type |
|
|
|
|
| Porcelain Clad VCB |
Up to 36 kV |
Up to 2000 A |
Up to 40 kA |
IEC,IS |
| Metal Clad VCB – KIOSK |
Up to 36 kV |
Up to 2000 A |
Up to 40 kA |
IEC,IS |
|
