Distribution-Power Products

Distribution-Power Products :

A Distribution Transformer is a transformer that provides the final voltage transformation in the electric power distribution system, stepping down the voltage used in the distribution lines to the level used by the customer. If mounted on a utility pole, they are called pole-mount transformers (or colloquially a pole pig). If the distribution lines are located at ground level or underground, distribution transformers are mounted on concrete pads and locked in steel cases, thus known as pad-mount transformers. Because of weight restrictions transformers for pole mounting are only built for primary voltages under 30 kV.

Power Transformer:

We are leading supplier of Power Transformer. We are supplying Power Transformer to Paraguay, Nigeria, Uganda, Kenya, Tanzania, Zambia etc. We are supplying different category Power Transformer. Their range are as follows.
Product Range :

Description	Ratings	Voltages	Standards
Amorphous Metal Cores Distribution Transformers	Up to 2.5 MVA	Up to 36 KV	IEC
Autotransformer	Up to 30 MVA	Up to 72.5 KV	IEC
Cast Resin Dry Type	Up to 10 MVA	Up to 36 KV	ANSI,IEC,IS
Conventional Oil Cooled Distribution Transformers	Up to 4 MVA	Up to 33 KV	ANSI,IEC,IS
Corrugated Tank Oil Cooled Transformers	Up to 2.5 MVA	Up to 33 KV	ANSI,IEC,IS
Converter Transformer	As per requirements	As per requirements	IEC,IS
Low Power Oil Immersed Transformers	Up to 31.5 MVA	Up to 132 KV	ANSI,IEC,IS
Neutral Grounding	Up to 1.25 MVA	Up to 66 KV	ANSI,IEC,IS
Pad-Mount Modular Distribution Centers	Up to 9.375 MVA	34.4 kV – 200 KV BIL	ANSI
Phase-Shifting	Up to 5 MVA	Up to 36 KV	IEC
Primary Unit Substation Transformers	Up to 30 MVA	138 KV	ANSI
Secondary Unit Substation Transformers	Up to 33 MVA	Up to 34.5 KV	ANSI
Self Protecting Distribution Transformers	Up to 400 KVA	Up to 36 KV	IEC
Single-phase Pole mount Distribution Transformers	Up to 100 KVA	Up to 36 KV	IEC
SLIM Transformer®	Up to 10 MVA	Up to 72.5 KV	ANSI,IEC
Bio-SLIM® Distribution Transformers	Up to 7 MVA	Up to 72.5 KV	ANSI,IEC
Small Power Distribution Transformers	Up to 14 MVA	69 KV, 350 KV BIL	IEC
Steep-Wave Distribution Transformers	As per requirements	As per requirements	IEC
Three-phase Pad-Mounted Transformers	Up to 10 MVA	Up to 34.5 KV	ANSI
Three-phase Pole or Platform Type Transformers	Up to 5 MVA	Up to 36 KV	ANSI,IEC
Three-Phase Station Type Transformer	Up to 3 MVA	Up to 34.5 KV	ANSI
Wind pad Three-Phase	Up to 5 MVA	Up to 34.5 KV	ANSI,IEC

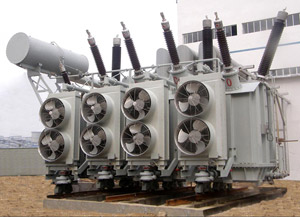

Power Transformer:
power-transformer

Product Range :

Description	Ratings	Voltages	Standards
Autotransformers	Up to 1000 MVA	Up to 765 KV	ANSI,IEC,NEMA,OTHER
Generator Step-up Transformers	Up to 1000 MVA	Up to 765 KV	ANSI,IEC,IS,BS,NEMA,OTHER
Small Power Transformers	Up to 25 MVA	Up to 138 KV	ANSI,IEC,IS,NEMA,OTHER
Medium Power Transformers	Up to 60 MVA	Up to 230 KV	ANSI,IEC,IS,BS,NEMA
Large Power Transformers	Up to 600 MVA	Up to 765 KV	ANSI,IEC,IS,BS
Regulating Power Transformers	Up to 20 MVA	Up to 66 KV	IEC,OTHER
System / Two Winding Transformers	Up to 300 MVA	Up to 275 KV	IEC,OTHER
Phase-shifting Transformers	Up to 500 MVA	Up to 525 KV	ANSI,IEC
HVDC Converter Transformers	Up to 750 MVA	Up to 500 kV	ANSI
Mobile Transformers	Up to 100 MVA	Up to 245 KV	ANSI,IEC
Shunt Reactors	Up to 125 MVA	Up to 765 KV	ANSI,IEC,IS,OTHER
